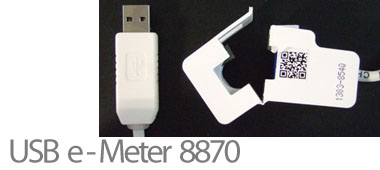

– 8870
Non Contact Current meter recorder/Clamp, Support "LabView" software, Long time monitoring the meter (Amp), With SDK Support CDC ROM (RS 232 Mode) USB e-Meter 8870 is a very convenient and economical "Non-Contact USB Current Meter" Just open the meter and put the L or N cable then you can get and record the current value in PC. Support USB CDC Emulation model for wild supplication. • Without having to make physical contact of power line, simply place around an electrical conductor. • Safety measure the power current in "Distribution Box". • Auto record the current value and save in PC for evaluation and application. Measure the current range of electricity device at 0A ~ 10A, User do not need to search the metal part and can quick and safely get detect the value of current. economical device for network power control with Current Meter.
– Features
• Fit for long time display record in PC
• Support USB CDC emulation mode (RS232 control).
• Read the current in Hyper terminal.
• Support SDK for system integrator or hobbyist to make development
– Specification
| Power input | Standard USB 5V |
| Measure | Current Range 40 ~ 66Hz, 0 ~ 10A (Accuracy : ±0.2A) |
| Sampling Rate | Max. Software read : 2 times per second |
| 8870 output the value | 3s |
| Response Time | 0.1 sec |
| Windows OS | WIN10, WIN 8, WIN 7, Vista or XP USB 2.0 / 1.1 Microsoft.NET Framework Version 3.5 or above |
